ICFs vs. Traditional Construction

How ICFs Compare to Other Building Materials

Insulated Concrete Forms (ICFs) have emerged as a leading construction practice for builders and architects seeking durability, efficiency and environmental sustainability. In terms of cost, energy efficiency and design flexibility, let’s see how ICFs stack up against traditional building methods, such as:

ICF vs. Wood Framing

Compared to Insulated Concrete Form walls, wood framing falls short in terms of durability and resistance to external forces. ICF assemblies can withstand extreme weather and winds of up to 250 mph (402 kph), while wood-framed walls are vulnerable to high winds and impact.

Wood is also susceptible to termites, mold and costly water damage as opposed to low-maintenance ICFs. While wood is only fire-rated for 45 minutes, ICF walls have a fire rating of 4 hours, providing occupants more time to safely evacuate.

Wood-frame structures have insulation between the wood studs, but every stud serves as a thermal break, leading to inconsistent interior temperatures and reduced energy efficiency. Insulated Concrete Form walls, on the other hand, have continuous interior and exterior insulation for improved energy performance and a more comfortable living space.

ICFs can even result in up to 60% lower heating and cooling bills!

Download ICF vs. Wood Brochure

ICF vs. Tilt-Up Construction

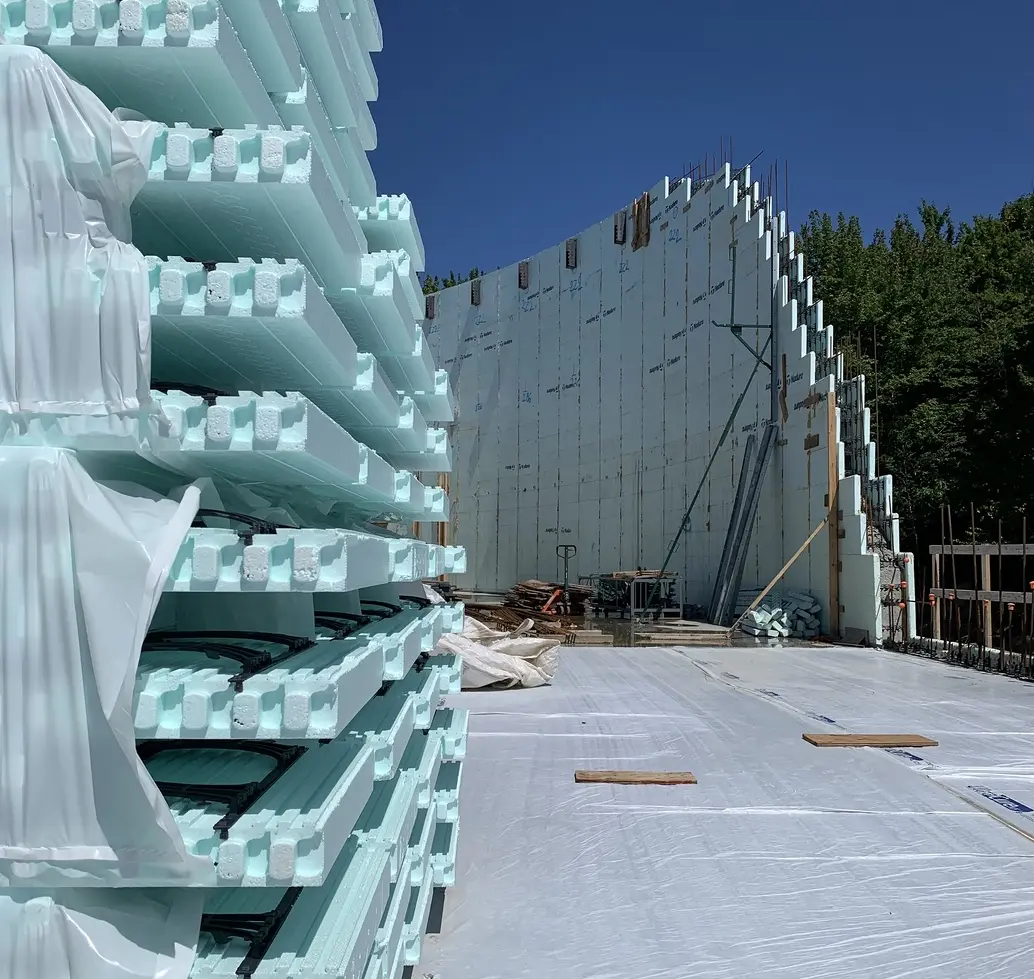

Tilt-up construction, while advantageous for large commercial projects due to rapid wall erection, lacks the design versatility offered by Insulated Concrete Forms. ICFs can easily accommodate curves, custom geometries and interior and exterior finish options, making it suitable for a wide range of architectural styles, from residential homes to unique commercial buildings.

Tilt-up construction also requires extensive planning and heavy equipment for lifting and placing the concrete panels, increasing costs and limiting its application to larger projects. In contrast, ICF walls can be installed quickly with less equipment and labor, making them a viable option for various project sizes.

In terms of project delays, tilt-up construction is highly dependent on suitable weather due to its outdoor casting process. In comparison, ICF construction can proceed under various conditions, allowing for a more predictable and expedited construction schedule.

Tilt-up construction necessitates additional steps to achieve the superior insulation values that come standard with ICF. For projects prioritizing energy efficiency, ICF provides a clear advantage with its built-in continuous insulation.

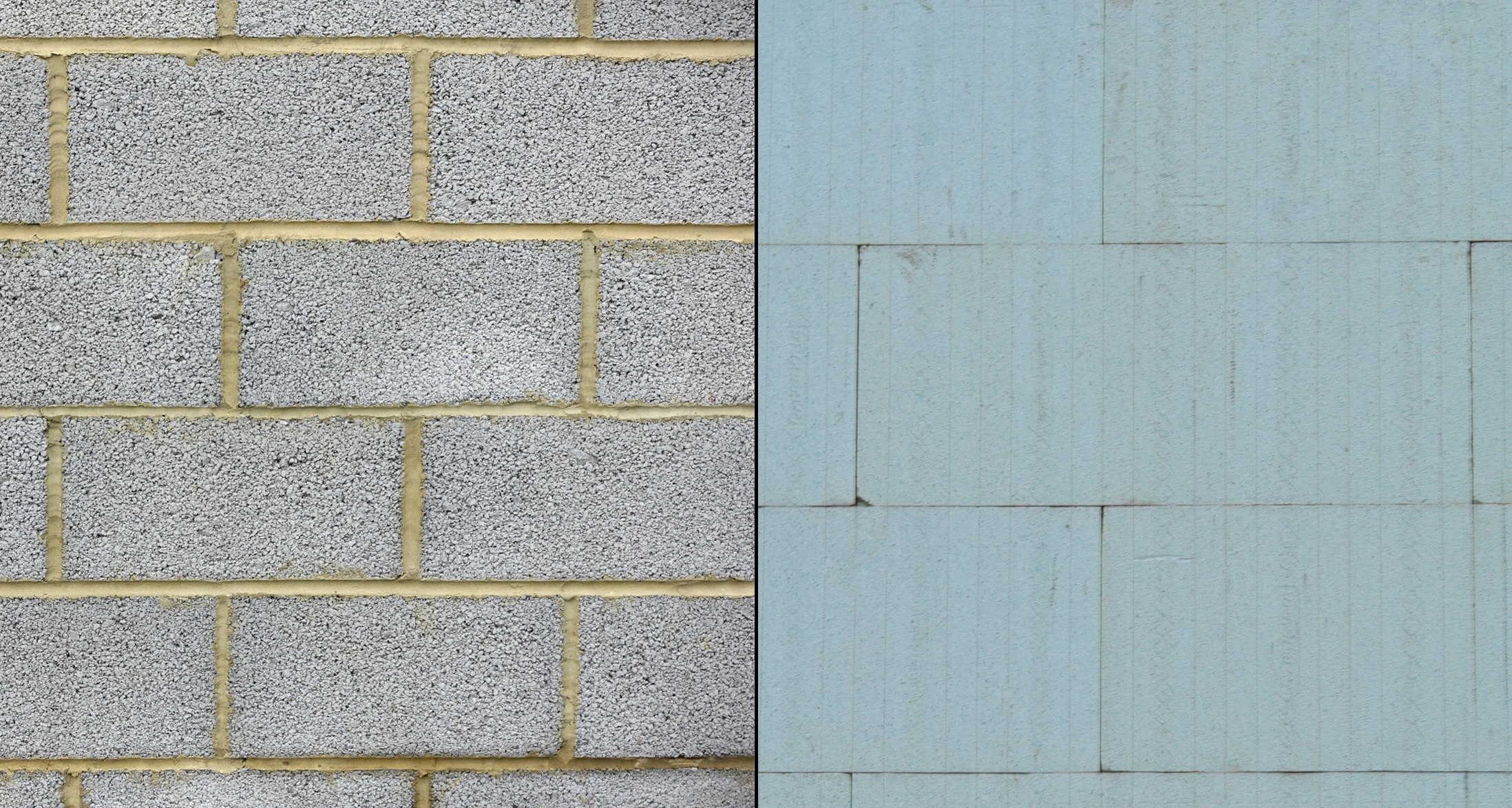

ICF vs. CMU (Cinder Block)

CMU construction is known for its structural strength, providing a rigid framework that can support significant weight and withstand severe weather. However, CMU construction lacks in design flexibility. Insulated Concrete Forms can be molded into various shapes and sizes to accommodate any design or performance needs, whereas CMU walls are limited to standard block sizes and require additional labor and materials for customization.

Stacking heavy cinder blocks is a labor-intensive process and cannot compete with the swift assembly of ICF walls. To achieve the same durability, energy-efficiency and resiliency of an ICF structure with cinder blocks, builders must install added reinforcements and insulation. This increases build time and cost, while opening up more opportunities for application errors.

Download Our ICF vs. CMU Brochure

ICF vs. Steel Construction

Steel construction is a popular choice for commercial and industrial applications due to its strength, durability and speed of erection.

However, when comparing steel construction to Insulated Concrete Forms, several drawbacks of metal framing become apparent, especially in terms of thermal performance and energy efficiency. Steel conducts heat, making buildings vulnerable to thermal bridging, where heated or conditioned air can be lost or gained through the wall. This air leakage can lead to higher operational costs due to increased demand on HVAC systems. In contrast, ICF structures boast continuous insulation on both the interior and exterior, significantly reducing thermal bridging and enhancing overall building performance.

Additionally, steel structures require more complex insulation solutions to meet energy code requirements, potentially increasing construction costs. They are also susceptible to corrosion if not properly maintained, especially in harsh or maritime environments, which can compromise structural integrity over time.

In terms of fire resistance, steel loses strength when exposed to high temperatures, necessitating additional fireproofing measures to ensure the safety and stability of the structure in the event of a fire. ICF, on the other hand, offers up to a 4-hour fire rating, enhancing the safety of occupants and providing additional time for evacuation without the need for extra fireproofing.

While steel construction remains a viable option for certain types of projects, ICF presents a compelling alternative for those prioritizing energy efficiency, occupant comfort, and long-term durability.

ICFs in Modern Construction

For builders and architects aiming to deliver projects that excel in durability, energy efficiency and design versatility, Insulated Concrete Form construction is the way to go over conventional building methods. ICFs stand out as the superior choice for an array of applications to meet and exceed code requirements and client needs.
